DESCRIPTION

Basic Info.

Model NO.	customized
Suitable for	Copper
Type	Cnc Bending Machine
Industry	Electrical
Material	Copper/ Aluminul
Weight	500kg
Control	Servo Motor Control
Transport Package	Wooden Case
Specification	4150*1590mm
Trademark	GJ
Origin	Shandong
Production Capacity	10 Sets /Month

Product Description

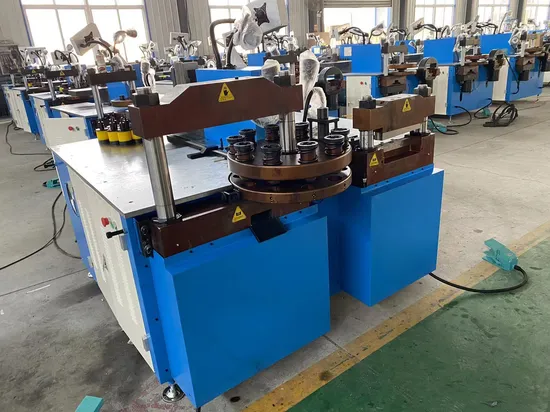

CNC High effiency Servo Busbar Bending Machine GJCNC- BBSummary CNC busbar bending machine is the computer-controlled equipment dedicated for busbar bending, performing various bending operations through the coordination of X-axis and Y-axis movenments, assisted with manual feeding. The selection of different dies can complete the plane bending, side bending and other processes of busbar. The machine can be used in combination with GJ3D software, and is able to accurately calculate the spread length of the bend. As to the frequently bent workpiece, it can automatically find the bending order to achieve programming automation, simulate the bending order to place busbar and avoid erros in determining the bending positions.1. Closed-loop bending structure: X and Y axes use a precision linear guide to ensure the fabricating accuracy and to avoid the drawbacks of open-loop bending, and to ensure the consistency of the machine angle in the width direction. During the vertical bending , the dies of this machine have automatic clamping and releasing functions to ensure the machining plane flatness and reduce damages due to bending arc.2. GJ3D programming software:The assistant software specially used for busbar processing is adopted by networking with this machine to realize the automated programming. User can use this software to carry out operations conveniently and rapidly. The software can accuratly calculate the punching position after the bending is spread, and automatically generate the machine code. Thus saving the tedious manual programming of machine code. It can also demonstrate the whole process of busbar bending, which can effectively prevent from material waste caused by coding errors from mnual entry.3. Touch ScreenHuman- computer interface is easy to operate the relects in real time the program execution. It has the function of displaying the alarm message of equipment operation and allows the easy setting of die parameters and the operation of equipment.4. High-speed Operation SystemThis machine uses high-precision ball screws and liear guides to ensure high precision and high efficiency. long operation lift and zero noise.
